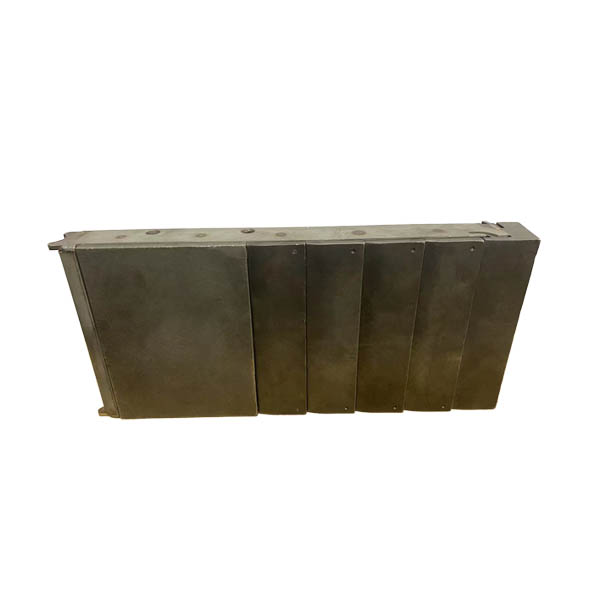

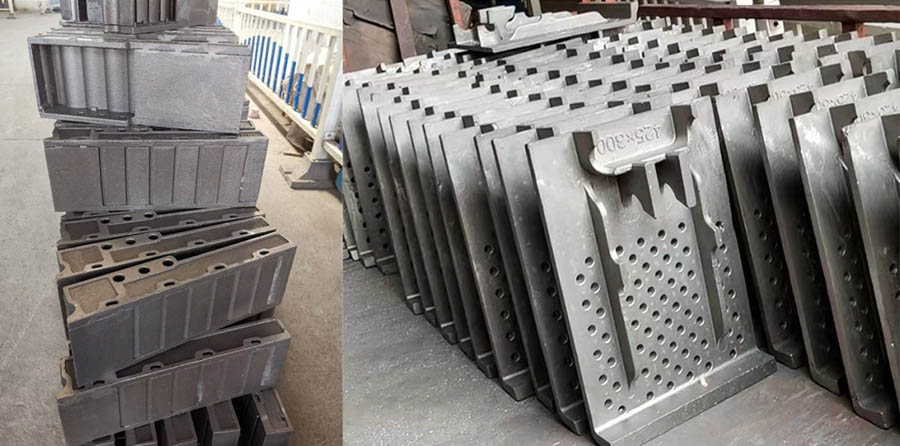

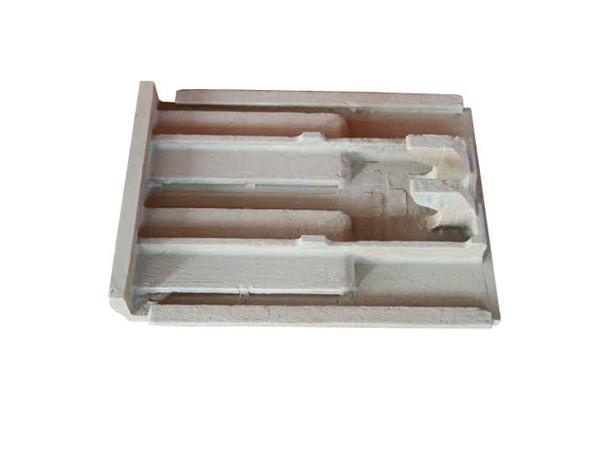

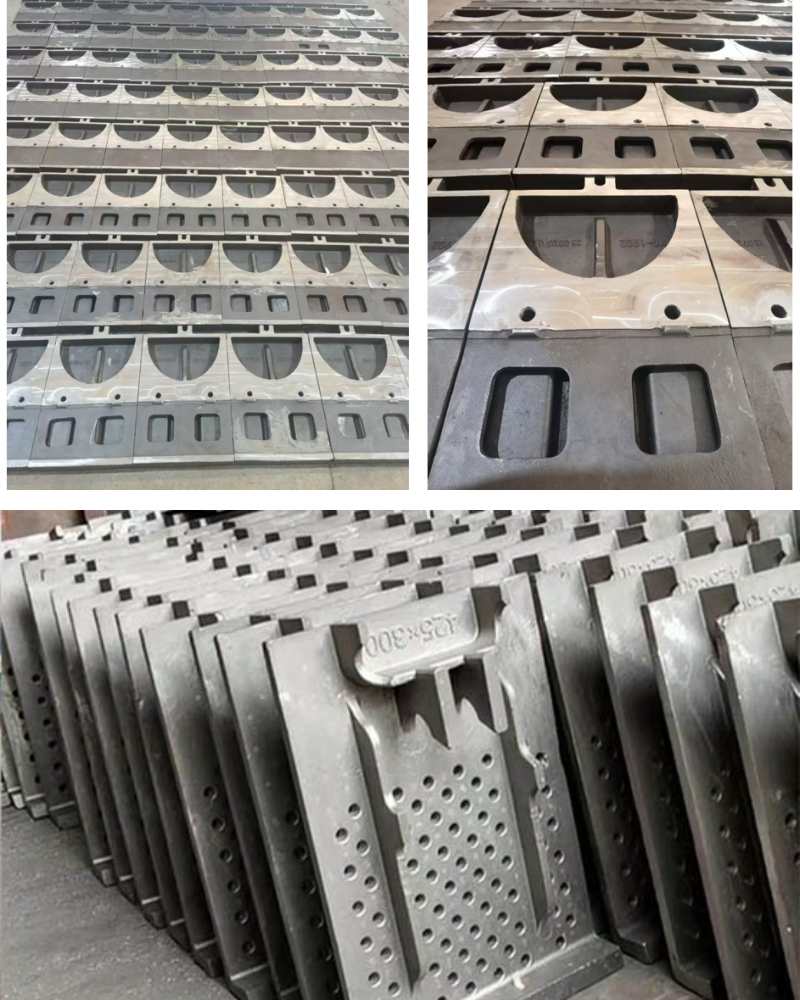

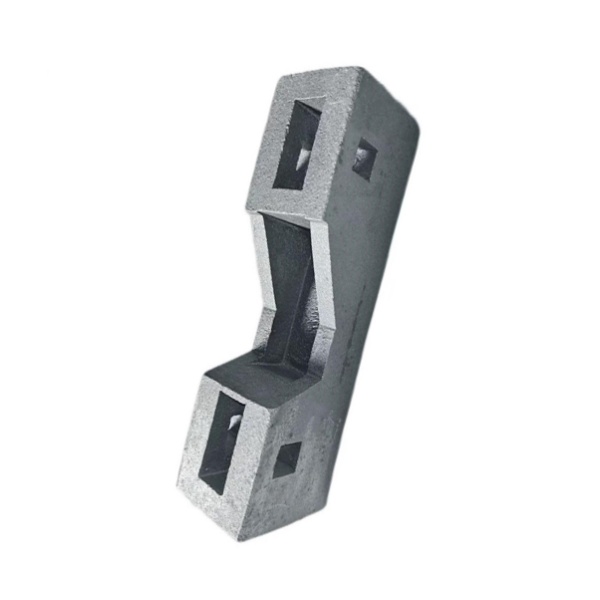

Cooling Grate/Grate Cooler Grate Plates

OEM tailor design


Product name: Grate Cooler grate plates/Heat-resistant steel grate plate/wind board/Air grate plate

Production process: Precision casting, Sand casting, Lost foam casting, Centrifugal casting

Material types: 1Cr10MoW2VNbN,12Cr1MoV,25Cr2MoVA,12Cr2MoWVTiB,Low-alloy heat-resistant steel, low-chromium-nickel oxidation-resistant steel,etc.

Applicable industries: Cement, metallurgy, chemical industry, steel, pellets, etc.


Our service:

1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.

2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.

3. After sales, we will continue to pay attention to the usage of the product and provide timely help.


If you need detailed technical information of the product or cannot find the product you need on the website, please email us锛zhiliwearparts@lyzhili.com锛, because we are a customized factory for heat-resistant steel castings.


Application areas: Cement grate cooling machine, manufacturing parts for boilers, steam turbines, power machinery, industrial furnaces, aviation, petrochemicals, etc. that work at high temperatures.

Application scenario: After the cement clinker enters the cooler from the kiln, it is spread on the grate plate to form a material layer of a certain thickness. The cold air blown in passes through the material layer moving on the grate bed in perpendicular directions to quench the clinker, and the clinker can be quenched from 1300-1400鈩 to below 100鈩 within a few minutes.

Classification by normalized organization: austenitic heat-resistant steel, martensitic heat-resistant steel, ferritic heat-resistant steel and pearlite heat-resistant steel.

Features:

1. The heat-resistant steel grate plate has good wear resistance and long service life, which is more than ten times that of metal screens, 3-5 times that of ordinary rubber plates, and 2-3 times that of stainless steel;

2. It absorbs shock and reduces noise, and the cost is lower than that of metal screen plates;

3. The heat-resistant steel screen plate has good automatic cleaning, and due to its multiple holes, the screening efficiency is high;

4. It has good moisture resistance and wear resistance.
